Description

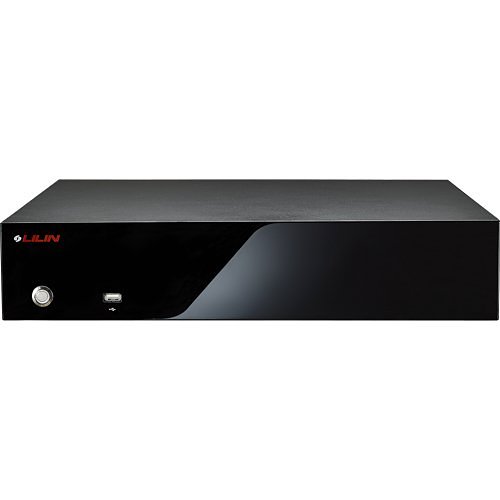

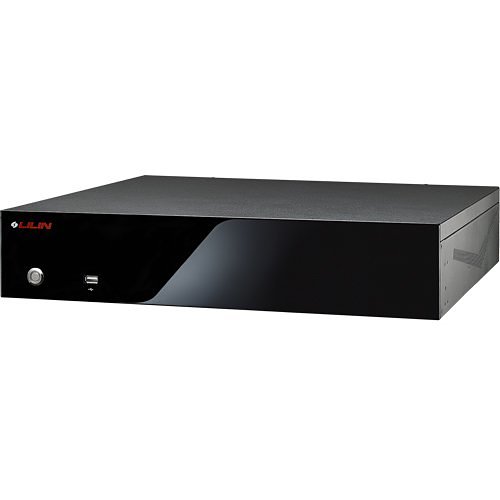

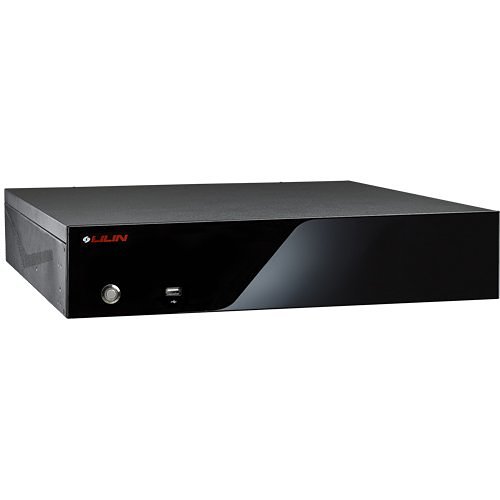

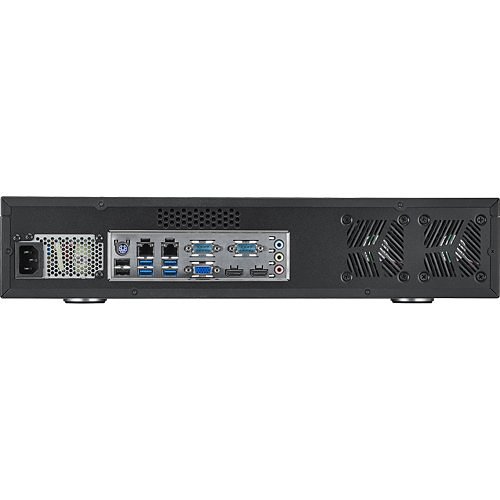

The LILIN NAV2036A 36-channel Network Video Recorder is optimized for integration with LILIN IP cameras, PTZ dome IP cameras, DVRs, and NVRs. This recorder expertly handles up to 36 channels with capabilities for 1080P, 3M, 4M, 5M, 8M, and 12M network streaming and recording. It features dual-port Gigabit Ethernet and dual monitor support. The system is equipped to manage multi-channel playback for both remote and local navigation, along with failover mechanisms, video archiving, and video synchronization.

The NAV2036A facilitates continuous and scheduled recordings, and it incorporates versatile alarm detection systems including motion, alarm, audio, Intelligent Video Surveillance (IVS), and optional Automatic Number Plate Recognition (ANPR) for triggering diverse alarm outputs. It supports video streams of up to 1080P at 120FPS and 4K at 30FPS. The device further enhances video management systems with features such as simultaneous 36-channel playback, dual monitor capabilities, camera grouping options, robust authentication processes, two-way audio, and dual-streaming for added operational flexibility.

Certifications
NDAA CompliantYes
TAA CompliantYes

Controllers
RAID Levels0, 1, 10, 5, 50, 6, 60

General Information
Brand NameMerit LILIN
Manufacturer Part NumberNAV2036A-1X12TB
Product SeriesNAV

Miscellaneous
ADI Cloud Storage EligibleYes

Network & Communication
Remote ManagementYes

Storage
Hard Drive Capacity12TB

Technical Information
Connectivity TechnologyWired
Storage Capacity12TB
Total Number of Channels36

Video
Maximum Resolution12MP
