Description
The NMX-ENC-N1122A encoder offers AV professionals two RJ45 network ports, including one supporting Power over Ethernet (PoE). The entire MPC N1000 series is designed with output scaling, serial communication, balanced audio, HDMI video connectivity, and AES67 compatibility, making it an excellent choice for in-room or small to mid-sized video matrices where low latency is crucial.
The N1000 Series Encoders and Decoders provide a cost-effective local AV over IP solution, converting video into a minimally compressed IP format, enabling configurations from a simple 2×1 seamless presentation switcher to a more complex mid-sized matrix switcher using standard network switches.
COMMON APPLICATIONS
The NMX-ENC-N1122A serves as an ideal solution for low-latency applications like live presentations in conference rooms and classrooms.
FEATURES
- Output Scaling – Facilitates seamless video switching from any source, at any resolution, to any display device, ensuring video quality remains intact.
- 1 Frame Latency – Comparable to HDBaseT, providing minimal delay.
- Minimal Proprietary Compression (MPC) – Utilizes a visually lossless MPC algorithm.
- Power Over Ethernet (PoE) – Eliminates the need for an external power supply.
- Infrared (IR) Capability – Allows control of cost-effective, IR-only display devices.
- Onboard Control – Built-in control capability enables event-based triggering of TCP/UDP commands to other network-controlled devices.
- Unmatched Flexibility – Competitive pricing for matrices up to 32×32, with larger configurations available with expert design assistance.
- Separate Inputs – Equipped with distinct HDMI and VGA input connectors.

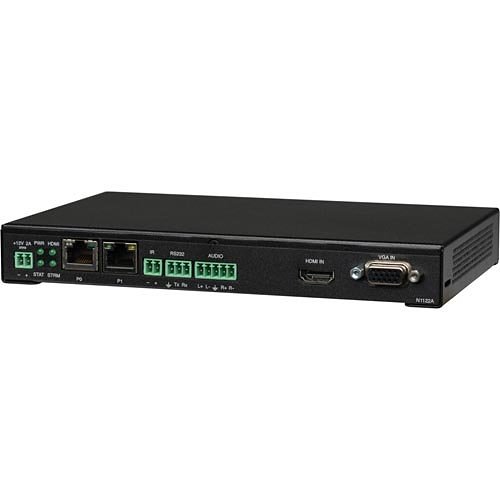

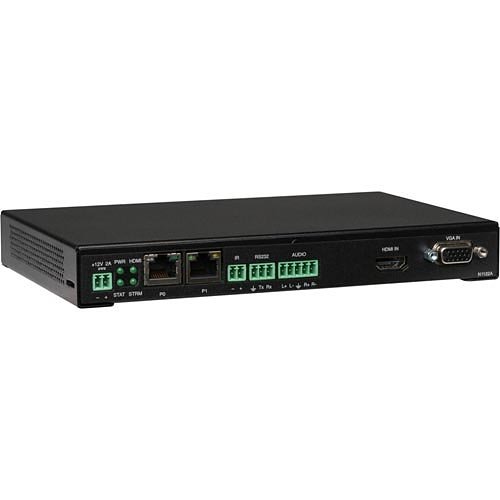

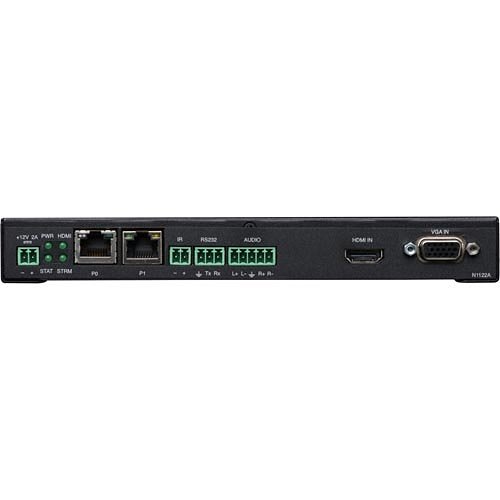

- Two RJ45 Ports – Includes two RJ45 network ports, one supporting PoE.
- Flexible Form Factor – Available as a standalone device or as a card for use with NMX-ACC-N9206.
