Description

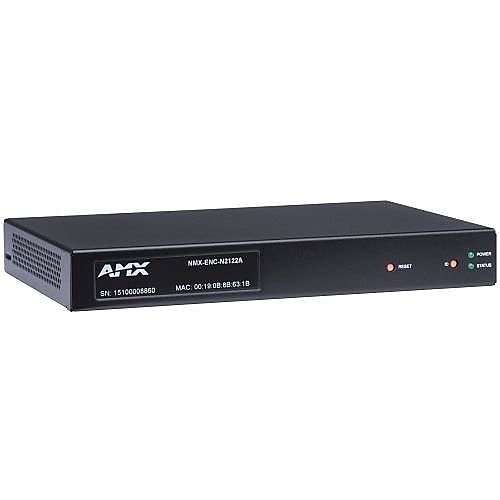

The NMX-ENC-N2122A video encoder seamlessly integrates various source formats into an existing IP-based network, allowing stream distribution to any endpoint within the facility. Compatible with NMX-DEC-N2222A or NMX-DEC-N2212A decoders, it enables conversion of streams back to HDMI or DVI format, ready for display on any monitor. This solution facilitates effective source-to-display distribution across large-scale systems, eliminating the need for proprietary cabling or dedicated switching hardware, thanks to industry-standard protocols.

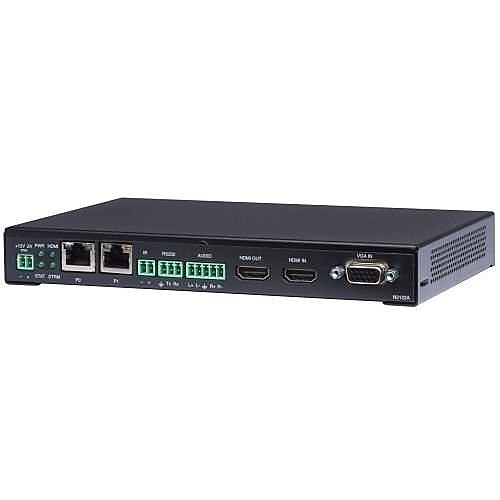

Key features include IR control, serial communication, balanced audio, dual network ports (with Power over Ethernet (PoE) capability), AES67 audio support, and a local video pass-through port. The unit automatically detects whether the input is analog or digital.
The SVSI N2000 Series is distinguished by its use of JPEG2000 compression, offering HD and cinema-grade video quality over local area networks (LAN). A user-friendly slider control in its web-based interface allows precise adjustments to video quality and bandwidth, ensuring tailored performance for each installation.
**TYPICAL USE CASES**
The NMX-ENC-N2122A is ideal for matrix switching and HD, cinema-quality video distribution across LANs in diverse settings such as corporate environments, houses of worship, entertainment venues, and stadiums.
**FEATURES OVERVIEW**
– **Input and Output Scaling**: Provides seamless switching from any source at any resolution, maintaining video integrity across displays or projectors.
– **Power Over Ethernet (PoE)**: Facilitates installations by removing the need for local power supplies, though optional 12VDC power is supported for flexible, high-density rack-mounted solutions.
– **Infrared (IR) Support**: Integration with low-cost IR-only devices is enabled via an infrared emitter connection.
– **Onboard Control**: Built-in control capabilities are included, offering the ability to trigger TCP/UDP commands to other IP-controlled devices.
– **Unlimited Scalability**: Easily expand your system without limitations.
– **Pass-Through HDMI Port**: Allows straightforward connection for local displays, such as desktop PCs.
– **Flexible Configuration Options**: Available as a standalone unit or as a card for use with NMX-ACC-N9206.
