Description
These Altronix AC Wall Mount CCTV Power Supplies deliver 24VAC or 28VAC through sixteen (16) fuse or Class 2 Rated PTC protected power-limited outputs, designed to power CCTV cameras, heaters, and various video surveillance accessories.

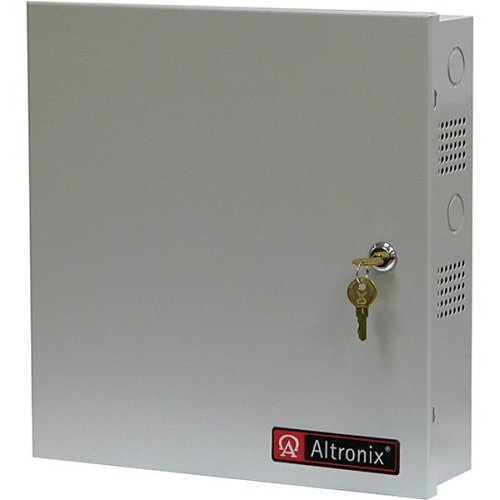

Altronix ALTV2416300ULCB CCTV Power Supply, 16 PTC Class Outputs, 24/28VAC at 12.5A 115VAC, BC300 Enclosure
in stock
Special Order
$285.23
- Sixteen (16) outputs protected by fuses or PTCs (Positive Temperature Coefficient).
- Compatible with 24V AC or 28V AC supply current.
- Equipped with surge protection for added safety.
- Features an AC power indicator LED.
- Includes a power ON/OFF switch (available in specific models).
- Models are available with an illuminated power disconnect circuit breaker with manual reset.
- Options with a factory-installed 3-wire line cord are available.
- Comes with spare fuses (applicable to models with primary and/or secondary fuses).
- Certified UL Listed for both U.S. and Canadian standards.
- Approved with CE marking.
| Certifications | |
| NDAA Compliant | Yes |
| General Information | |
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | ALTV2416300ULCB |
| Packaged Quantity | 1 |
| Product Model | ALTV2416300ULCB |
| Product Name | ALTV2416300ULCB Proprietary Power Supply |
| Product Type | Proprietary Power Supply |
| Miscellaneous | |
| Compatibility | HeatersCCTV CamerasVideo Accessories |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Depth | 3.3" |
| Height | 13.5" |
| Weight (Approximate) | 18.10 lb |
| Width | 13" |
| Power Description | |
| Input Voltage | 120V AC |
| Output Current | 12.5A |
| Technical Information | |
| Output Voltage | 24V AC, 28V AC |
| Warranty | |
| Limited Warranty | Lifetime |
