Description

Input: 115VAC, 50/60Hz, 1.9A. Output: Sixteen (16) fuse-protected outputs. Provides 24VAC at 8A (192VA) supply current (0.5A per device, 3.5A maximum) or 28VAC at 7A (196VA) supply current (0.438A per device, 3.5A maximum). Outputs are rated at 3.5A. Includes surge suppression technology.

Electrical Temperature Range: Operating temperature from 0°C to 49°C (32°F to 120°F), with storage temperature from -20°C to 70°C (-4°F to 158°F). Relative Humidity: 85% +/- 5%.

Energy Efficiency: Approximately 98 BTU/Hr at 24VAC and 100 BTU/Hr at 28VAC. System requires an AC input of 218.5VA.

Additional Features: Secondary fuse rated at 10A/250V. Equipped with AC power indicator LED, power ON/OFF switch, and spare fuses. Suitable for models with primary and/or secondary fuses.

Certifications
NDAA CompliantYes

General Information
Brand NameAltronix
ManufacturerAltronix Corporation
Manufacturer Part NumberALTV2416X
Product ModelALTV2416X

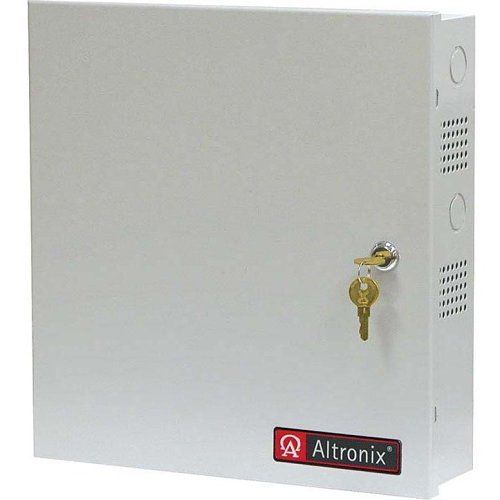

Product NameALTV2416X Proprietary Power Supply
Product TypeProprietary Power Supply

Miscellaneous
CompatibilityCCTV

Physical Characteristics
Depth3.5"
Height13"
Width13.5"

Power Description
Input Voltage110V AC
Output Current8A

Technical Information
Output Voltage24V AC
