Description

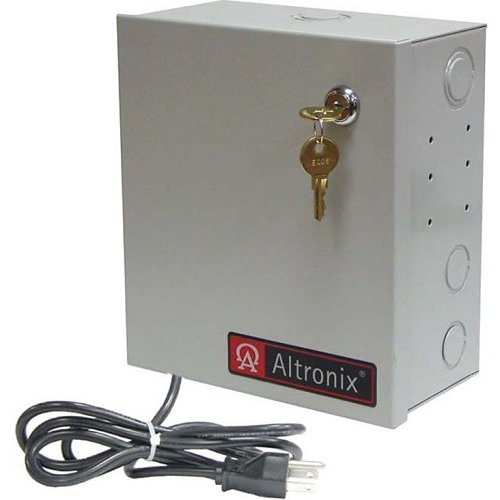

The ALTV284ULCBMI3 Isolated CCTV Power Supply is engineered to deliver 24VAC across eight isolated, Class 2 Rated PTC-protected, power-limited outputs, ideal for powering CCTV cameras, heaters, and other video accessories. It operates with an input of 115VAC, 50/60Hz, drawing 3A. The device provides an output of eight Class 2 Rated PTC protected outputs with a total supply current of 24VAC at 12.5A (300VA), and each output is rated for 2.5A. Equipped with surge suppression, it functions effectively within an operational temperature range of 0° C to 49° C (32° F to 120° F) and can be stored at temperatures ranging from -20° C to 70° C (-4° F to 158° F). The system accommodates relative humidity levels of 85% +/- 5% and generates approximately 154 BTU per hour. It requires a system AC input VA of 345VA. Key features include an illuminated master power disconnect circuit breaker with manual reset capability, ensuring camera synchronization, and the provision of spare fuses. The unit comes with a factory-installed, three-wire line cord.
