Description

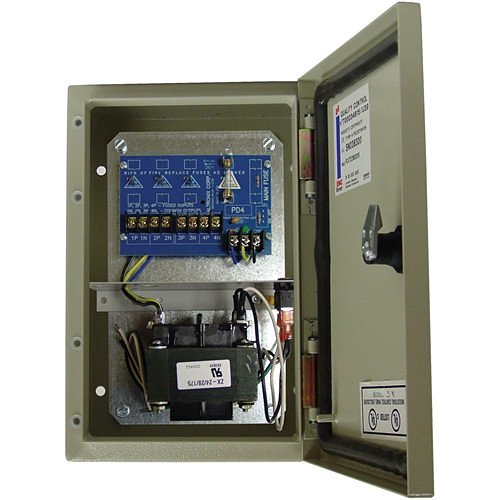

This product acts as a direct replacement for the ALTV244WP, delivering power through four secure outputs specifically designed for CCTV cameras, heaters, and various video accessories. It operates with an input of 115VAC at 50/60Hz and 1.76A. The device offers four protected outputs: one fuse-protected, non-power limited output rated at 10A/250VA, and three Class 2 Rated PTC-protected, power-limited outputs rated at 2.5A each with an auto-reset feature. It supplies either 24VAC at 7A (175VA) or 28VAC at 6.25A (175VA), featuring surge suppression for added reliability. Key features include an AC power LED and a manually resettable illuminated power disconnect circuit breaker. The outdoor-ready enclosure is NEMA 4 rated. The unit operates in temperatures ranging from 0°C to 49°C (32°F to 120°F) and can be stored in conditions from -20°C to 70°C (-4°F to 158°F) with a relative humidity of 85% +/- 5%. It has a BTU output of approximately 86 BTU/Hr at 24VAC and 90 BTU/Hr at 28VAC, with a system AC input requirement of 202.4 VA. Spare fuses are also included.
