in stock
Special Order
$386.14

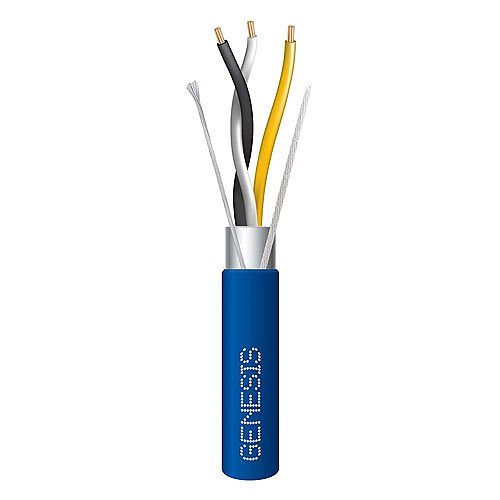

This Genesis® cable is equipped with a stranded 22 AWG copper conductor pair and a reference conductor, complemented by an overall foil shield with a drain wire, and is rated for plenum use. Opt for this cable to ensure high-speed data transmission for building automation, EIA-485, BACnet, and various other communication systems.
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 33242106 |
| Packaged Quantity | 1 |
| Product Model | 33242106 |
| Product Name | 33242106 - 22 Awg 1.5P Str Shielded Plenum, Blue, 1000 Ft. Reel-In-Box |
| Product Type | Access & Security Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Cable Length | 1000' |
| Color | Blue |
| Insulation Material | FEP |
| Material | Bare Copper |

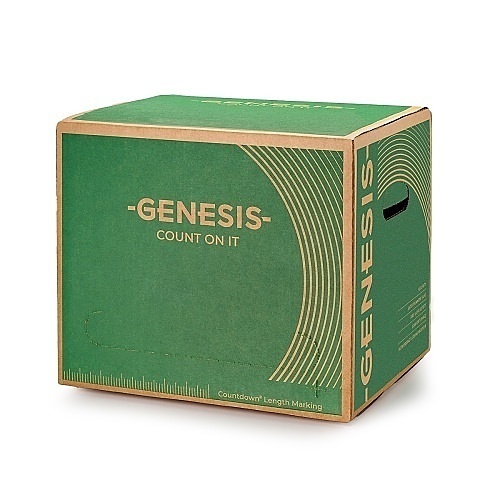

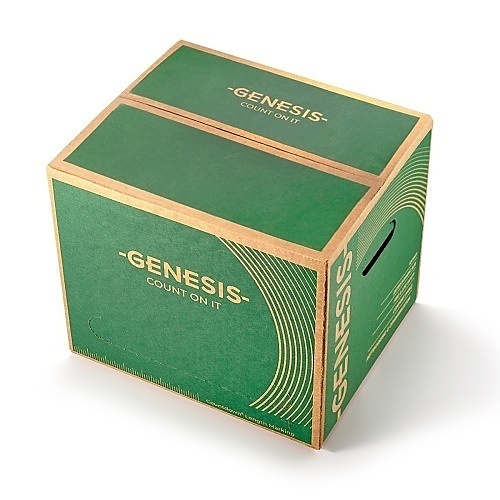

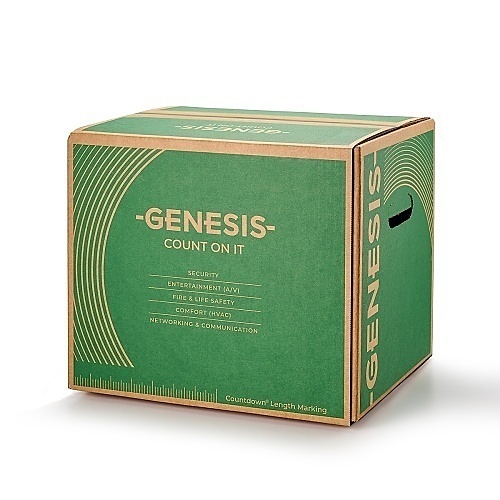

| Package Type | Reel-in-a-Box |
| Weight (Approximate) | 19.30 lb |
| Technical Information | |
| American Wire Gauge | 22AWG |
| Cable Listing | CL3P, CMP, FPLP, FT6 |
| Cable Rating | Riser |
| Cable Type | Multi-conductor/Multi-pair |
| Conductor Count | 3 |
| Conductor Material | Bare Copper |
| Device Supported | Communication System |
| Impedance | 120 ohms |
| Jacket Material | LS PVC |
| Number of Conductors | 3 |
| Number of Pairs | 1.5 |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
