in stock
Special Order
$1,228.50

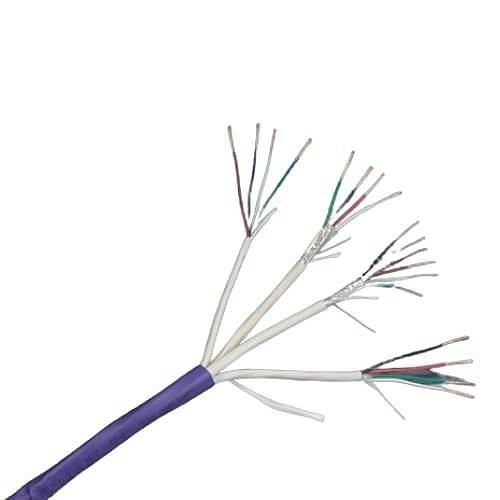

- The cable features four key components, starting with E1, which includes four conductors made of 18 AWG stranded bare copper.
- Component E2 comprises three pairs of 22 AWG stranded bare copper.
- Component E3 includes two conductors of 22 AWG stranded bare copper.
- Component E4 is made up of four conductors featuring 22 AWG stranded bare copper.
- Each of these elements is individually jacketed and collectively encased in a plenum-rated PVC jacket.
- It is UL Listed for CL3P or CMP signal classifications, meeting (c(UL)us) standards, with a temperature rating up to 75°C and tested for FT-6 flame resistance.
Access control systems play an essential role in enhancing building security. Whether you’re opting to acquire access control cables individually or as part of a composite cable solution, Paige offers the perfect cables tailored for your access control needs.
| General Information | |
| Brand Name | Paige |
| Manufacturer | Paige Electric Co, LP. |
| Manufacturer Part Number | 2S1680P6R1 |
| Product Name | Bulk Access Control Cable |
| Product Type | Control Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Cable Length | 1000' |
| Color | Yellow |
| Insulation Material | PVC |
| Material | PVC |
| Package Type | Reel |
| Product Color | Yellow |
| Product Material | Bare Copper |
| Technical Information | |
| American Wire Gauge | 18AWG, 22AWG |
| Cable Listing | CL3P, CMP |
| Cable Rating | Plenum |
| Cable Type | Bare Wire |
| Conductor Count | 4 |
| Device Supported | Access Security Cables, Stranded Cables |
| Jacket Material | PVC |
| Number of Conductors | 2|4 |
| Shielding | No |
| Solid or Stranded | Stranded |
