in stock
In Stock
$91.04

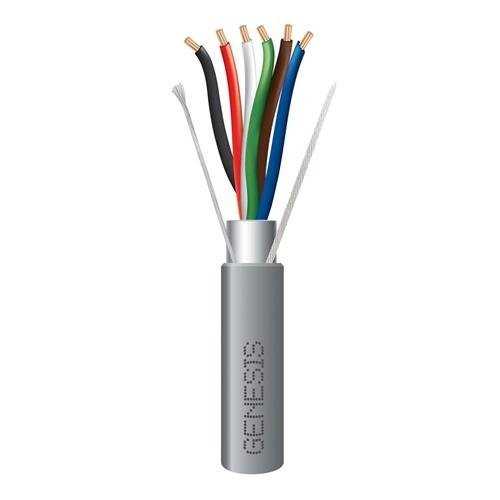

This cable is equipped with six stranded 22 AWG copper conductors, an overall foil shield with a drain wire, and is riser-rated, making it an excellent choice for reliable connectivity in security systems, control setups, audio installations, and other low-voltage applications.
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 22065509 |
| Packaged Quantity | 1 |
| Product Model | 22065509 |
| Product Name | 22065509 - 22 AWG 6C STR Shielded Riser, Gray, 500 FT. Pull Box |
| Product Type | Access & Security Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Others | |
| ADI Part Number Replaces | WG-12065509 |
| Model Number Replaces | 12065509 |
| Physical Characteristics | |
| Cable Length | 500' |
| Color | Gray |
| Insulation Material | PP |
| Material | Bare Copper |

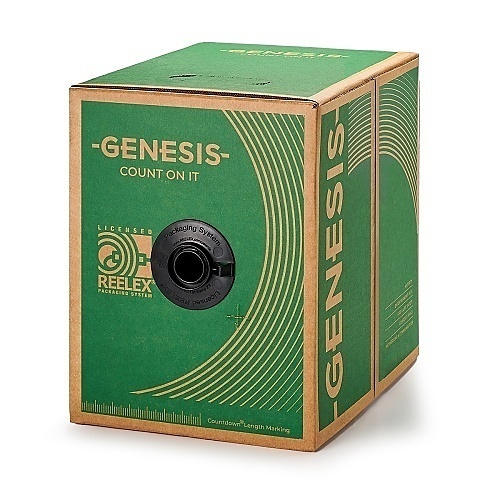

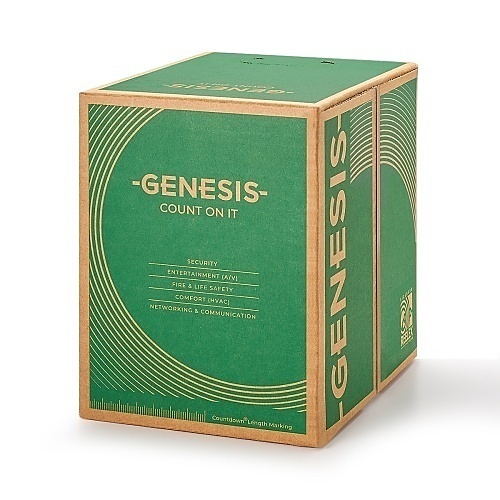

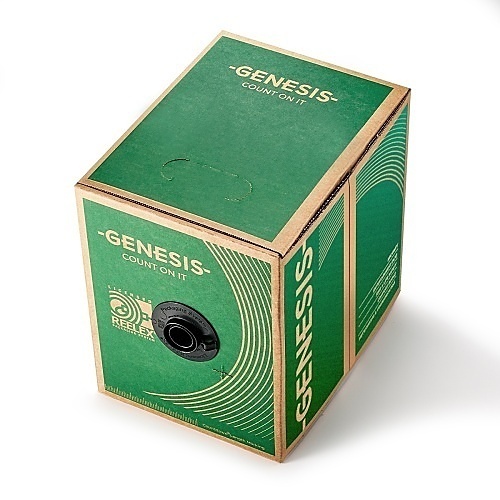

| Package Type | REELEX Pull Box |
| Weight (Approximate) | 10.70 lb |
| Technical Information | |
| American Wire Gauge | 22AWG |
| Cable Listing | CL3R, CMR, FPLR, FT4, Sunlight Resistant |
| Cable Rating | Riser |
| Cable Type | Multi-conductor/Multi-pair |
| Conductor Count | 3 |
| Conductor Material | Bare Copper |
| Connector on First End | Bare Wire |
| Core/Cladding Diameter | 22/6 |
| Device Supported | Audio Devices, Low Voltage applications, Security |
| Impedance | 59 ohms |
| Jacket Material | PVC |
| Number of Conductors | 6 |
| Number of Pairs | 3 |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
