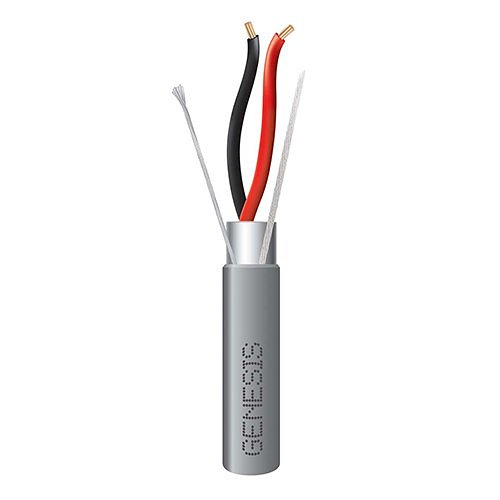

The Genesis® cable is designed with two stranded 18 AWG copper conductors, a comprehensive foil shield paired with a drain wire, and a riser rating. This cable is ideal for ensuring a reliable connection across security systems, electronic controls, audio set-ups, and various low-voltage applications.
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 22141109 |
| Packaged Quantity | 1 |
| Product Model | 22141109 |
| Product Name | 22141109 - 18 AWG 2C STR Shielded Riser, Gray, 1000 FT. Pull Box |
| Product Type | Access & Security Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Cable Length | 1000' |
| Color | Gray |
| Insulation Material | PP |
| Material | Bare Copper |

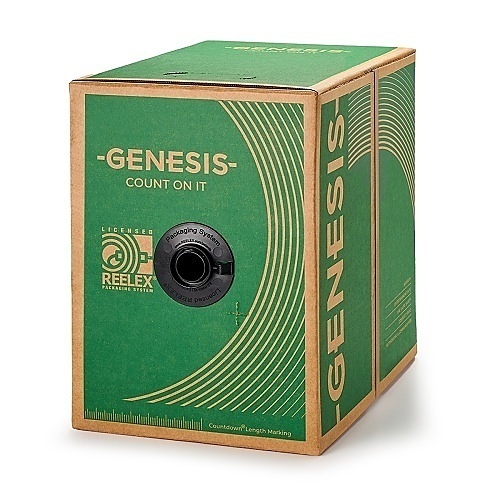

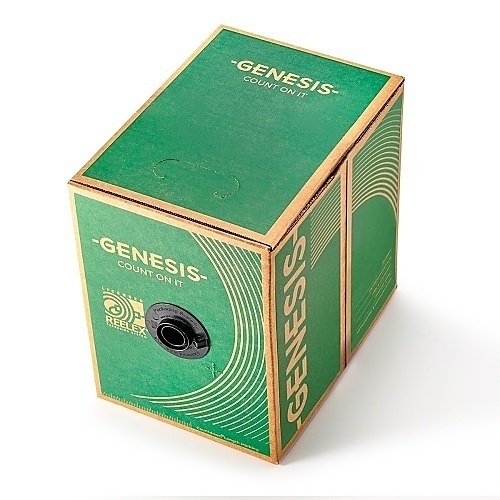

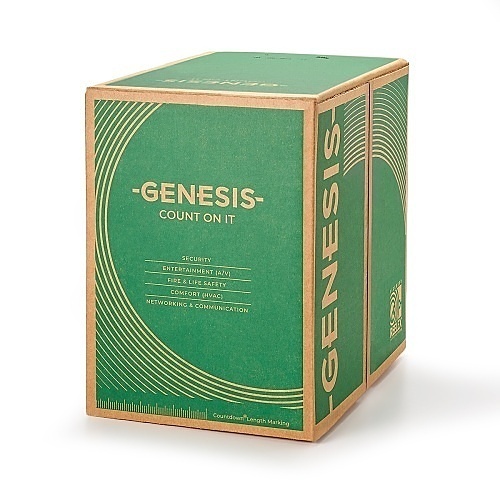

| Package Type | REELEX Pull Box |
| Weight (Approximate) | 18.30 lb |
| Technical Information | |
| American Wire Gauge | 18AWG |
| Cable Listing | CL3R, CMR, FPLR, FT4, Sunlight Resistant |
| Cable Rating | Riser |
| Cable Type | Multi-conductor/Multi-pair |
| Conductor Count | 1 |
| Conductor Material | Bare Copper |
| Connector on First End | Bare Wire |
| Connector on Second End | Bare Wire |
| Core/Cladding Diameter | 18/2 |
| Device Supported | Burglar Alarm, Intercom, Speaker |
| Impedance | 36 ohms |
| Jacket Material | PVC |
| Number of Conductors | 2 |
| Number of Pairs | 1 |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
