in stock
In Stock
$79.86
Our multi-conductor cables are available in a diverse range of gauge sizes, shielding options, and jacketing materials, including plenum, riser, and general-purpose options. These cables are ideal for applications such as control systems (Lutron and Crestron), alarm systems, intercoms, speakers, and other low-voltage circuits with power limitations.
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 22145509 |
| Packaged Quantity | 1 |
| Product Model | 22145509 |

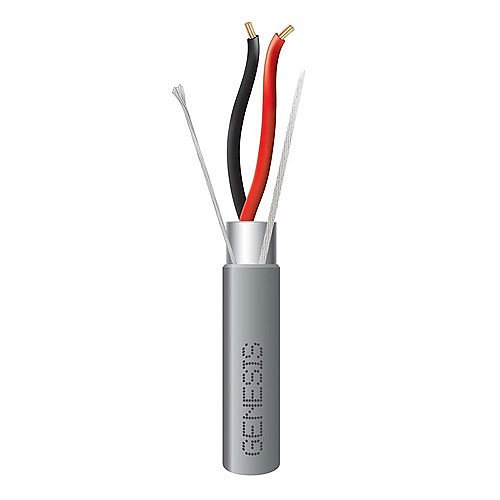

| Product Name | 22145509 - 18 AWG 2C STR Shielded Riser, Gray, 500 FT. Pull Box |
| Product Type | Access & Security Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Others | |
| ADI Part Number Replaces | WG-12145509 |
| Model Number Replaces | 12145509 |
| Physical Characteristics | |
| Cable Length | 500' |
| Color | Gray |
| Insulation Material | PP |
| Material | Bare Copper |

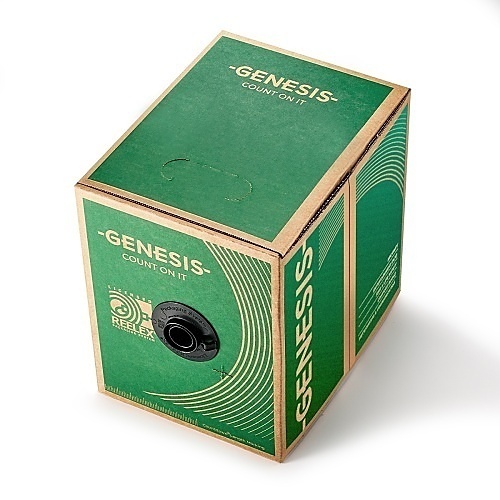

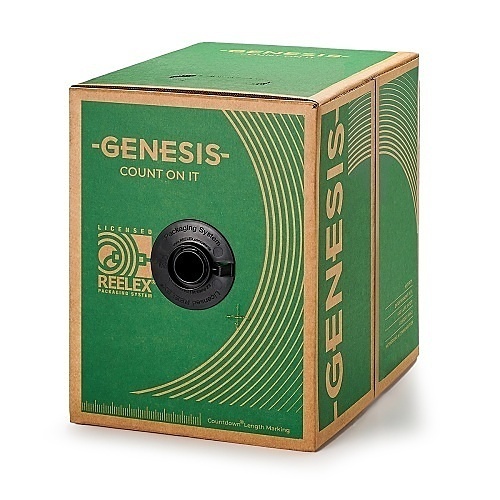

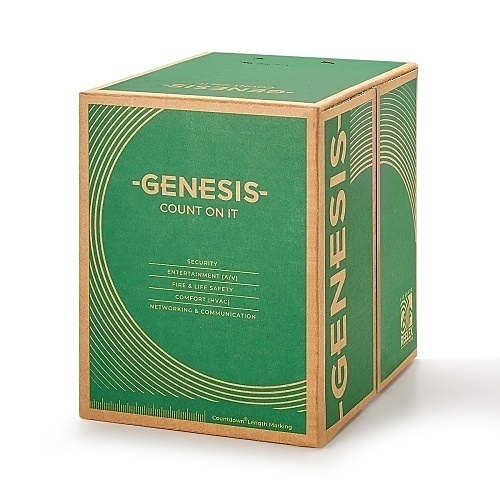

| Package Type | REELEX Pull Box |
| Weight (Approximate) | 18.30 lb |
| Technical Information | |
| American Wire Gauge | 18AWG |
| Cable Listing | CL3R, CMR, FPLR, FT4, Sunlight Resistant |
| Cable Rating | Riser |
| Cable Type | Multi-conductor/Multi-pair |
| Conductor Count | 1 |
| Conductor Material | Bare Copper |
| Connector on First End | Bare Wire |
| Connector on Second End | Bare Wire |
| Core/Cladding Diameter | 18/4 |
| Device Supported | Alarm, Intercom, Phone, Speaker |
| Jacket Material | PVC |
| Number of Conductors | 2 |
| Number of Pairs | 1 |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
