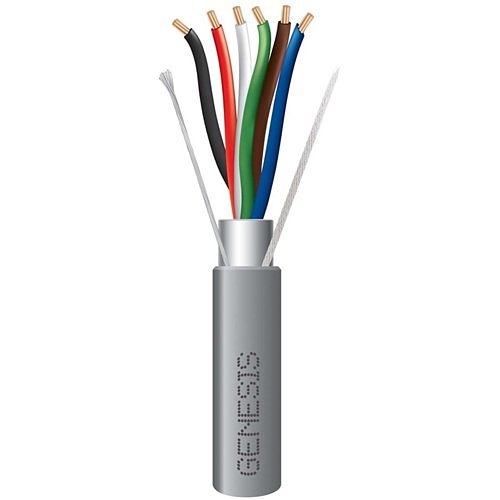

Genesis 22165509 18/6 Stranded Shielded Riser Cable, CL3R, FPLR, CMR, FT4, Sunlight Resistant, 500′ (152.4m), REELEX Pull Box, Gray

In Stock

$195.31

Stranded bare copper wire conductors
Overall aluminum foil shielding
Rated for riser and general purpose interior installations
Certified for UV resistance in sunlight exposure
Fully compatible with surveillance and security systems
Utilizes bare wire cable for superior performance and enhanced reliability

SKU: 22165509 Categories: Riser Shielded Cables, Security & Access Control Cables, Wire & Cable Brand: Genesis

Description

This Genesis® cable is designed with 6 stranded 18 AWG copper conductors, an overall foil shielding with a drain wire, and is riser-rated. Opt for this cable for reliable connectivity in security systems, control interfaces, audio setups, and various other low-voltage applications.

Certifications
TAA Compliant	Yes

General Information
Brand Name	Genesis
Manufacturer	Genesis Cable
Manufacturer Part Number	22165509
Packaged Quantity	1
Product Model	22165509
Product Name	22165509 - 18 AWG 6C STR Shielded Riser, Gray, 500 FT. Pull Box
Product Type	Access & Security Cable

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes
Features	Stranded
Indoor/Outdoor	Indoor

Others
ADI Part Number Replaces	WG-12165509
Model Number Replaces	12165509

Physical Characteristics
Cable Length	500'
Color	Gray
Insulation Material	PP
Material	Bare Copper

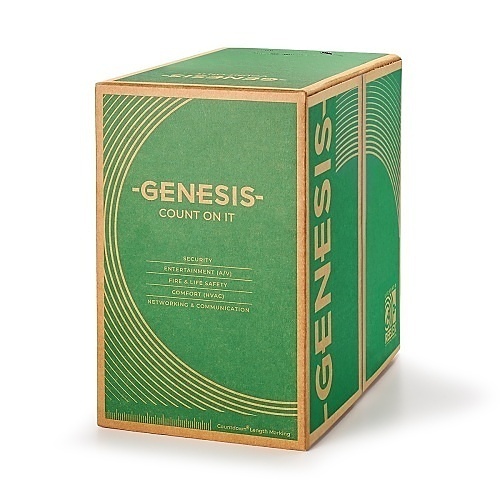

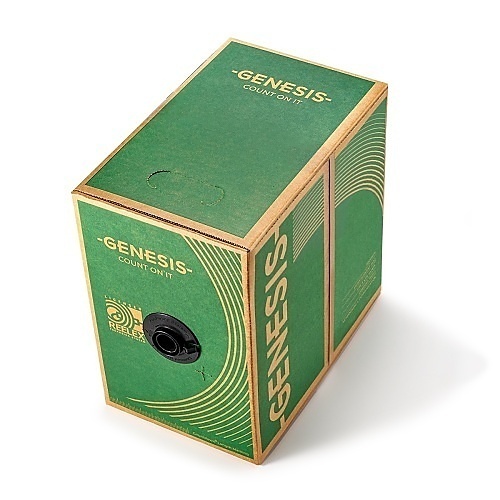

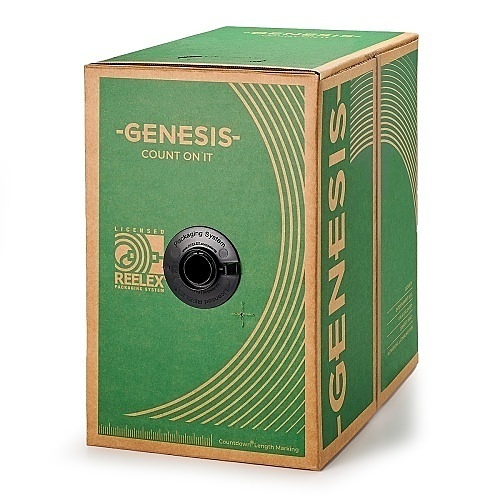

Package Type	REELEX Pull Box
Weight (Approximate)	21 lb

Technical Information
American Wire Gauge	18AWG
Cable Listing	CL3R, CMR, FPLR, FT4, Sunlight Resistant
Cable Rating	Riser
Cable Type	Multi-conductor/Multi-pair
Conductor Count	3
Conductor Material	Bare Copper
Connector on First End	Bare Wire
Connector on Second End	Bare Wire
Core/Cladding Diameter	18/6
Device Supported	Security Device
Jacket Material	PVC
Number of Conductors	6
Number of Pairs	3
Shielding	Yes
Solid or Stranded	Stranded

Warranty
Limited Warranty	3 Year; 3-for-1
