in stock
Special Order
$881.84

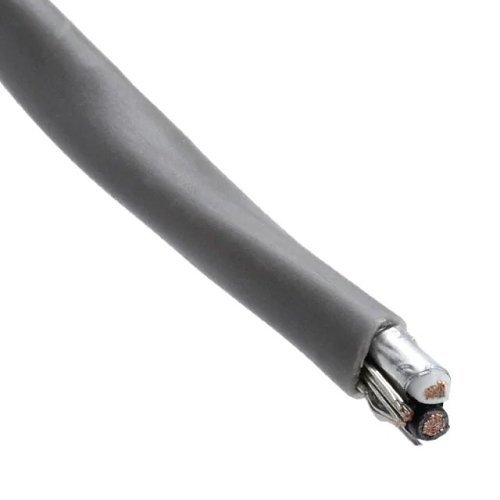

This electronic cable features a 2-conductor configuration with 20AWG (7×28) tinned copper, safeguarded by PE insulation and encased in a PVC outer jacket with an overall Beldfoil® shield. Designed with a CM rating, this cable is particularly suited for audio, control, and instrumentation applications. It is ideal for transmitting low voltage analog signals (e.g., 4-20mA, 0-10V), low voltage digital control (24V), line-level audio, computer communication, and panel wiring.
| General Information | |
| Brand Name | Belden |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 8762 060U500 |
| Product Name | Bare Wire Audio/Control Cable |
| Product Type | Audio/Control Cable |
| Miscellaneous | |
| Environmental Certification | EU RoHS, EU WEEE, RoHS, RoHS 2 |
| Environmentally Friendly | Yes |
| Features | Bendable, Stranded |
| Physical Characteristics | |
| Cable Length | 500' |
| Color Family | Gray |
| Insulation Material | PE |
| Technical Information | |
| American Wire Gauge | 20AWG |
| Cable Type | Bare Wire |
| Conductor Count | 1 |
| Device Supported | Audio Device |
| Jacket Material | PVC |
| Number of Conductors | 2 |
| Number of Pairs | 1 |
| Shielding | Yes |
| Solid or Stranded | Stranded |
