in stock
In Stock
$280.22

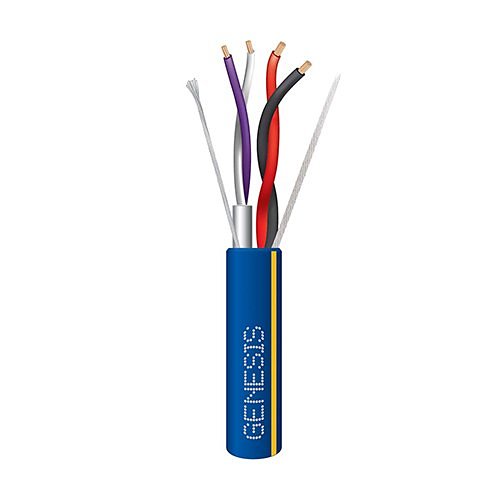

This Genesis® cable offers a data section and a power section designed in a parallel-zip configuration, carrying a general-purpose rating. The data section includes a stranded 22 AWG copper conductor pair, featuring low capacitance and an overall foil shield accompanied by a drain wire. The power section includes two stranded 18 AWG copper conductors. Ideal for Lutron Lighting and Shade control applications.
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 1244106Y |
| Packaged Quantity | 1 |
| Product Model | 1244106Y |
| Product Name | Coaxial Video Cable |
| Product Type | Lighting Control Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Cable Length | 1000' |
| Color | Blue with Yellow Stripe |
| Insulation Material | PP |
| Material | Bare Copper |
| Package Type | Reel |
| Technical Information | |
| American Wire Gauge | 18AWG, 22AWG |
| Cable Listing | CL2, CM, Sunlight Resistant |
| Cable Rating | General Purpose |
| Cable Type | Lutron Control |
| Conductor Count | 1 |
| Conductor Material | Bare Copper |
| Device Supported | Intercom, Satellite Receiver, Video Device |
| Jacket Material | PVC |
| Number of Conductors | 2 |
| Number of Pairs | 1 |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
