in stock
In Stock
$140.11

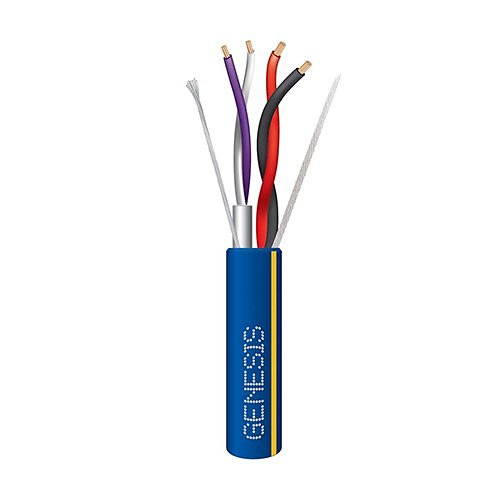

This Genesis® cable is designed with both data and power components in a parallel-zip architecture, suitable for general-purpose applications. The data component includes a stranded 22 AWG copper conductor pair, featuring low capacitance and an overall foil shield with a drain wire. Additionally, the power component comprises two stranded 18 AWG copper conductors. This cable is ideal for use in Lutron Lighting and Shade control systems.
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 1244506Y |
| Packaged Quantity | 1 |
| Product Model | 1244506Y |
| Product Name | 1244506Y Control Cable |
| Product Type | Lighting Control Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Cable Length | 500' |
| Color | Blue with Yellow Stripe |
| Insulation Material | PP |
| Material | Bare Copper |
| Package Type | Reel |
| Technical Information | |
| American Wire Gauge | 18AWG, 22AWG |
| Cable Listing | CL2, CM, Sunlight Resistant |
| Cable Rating | General Purpose |
| Cable Type | Lutron Control |
| Conductor Count | 1 |
| Conductor Material | Bare Copper |
| Connector on First End | Bare Wire |
| Connector on Second End | Bare Wire |
| Device Supported | Intercom, Satellite Receiver, Video Device |
| Jacket Material | PVC |
| Number of Conductors | 2 |
| Number of Pairs | 1 |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
