$169.55

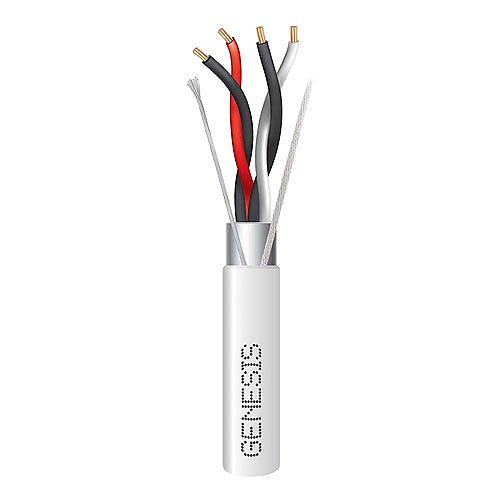

This Genesis® cable is designed with a 2 stranded 22 AWG copper conductor, an overall foil shield with a drain wire, and is plenum-rated. Opt for this cable to ensure a reliable connection in security systems, control panels, audio setups, and various low-voltage applications.
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 32811112 |
| Packaged Quantity | 1 |
| Product Model | 32811112 |
| Product Name | 22 AWG 2P STR Shielded Plenum, Natural, 1000 ft. Pull Box |
| Product Type | Access & Security Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Stranded, Tangle-free |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Cable Length | 1000' |
| Color | Natural |
| Insulation Material | LS-PVC |
| Material | Bare Copper |

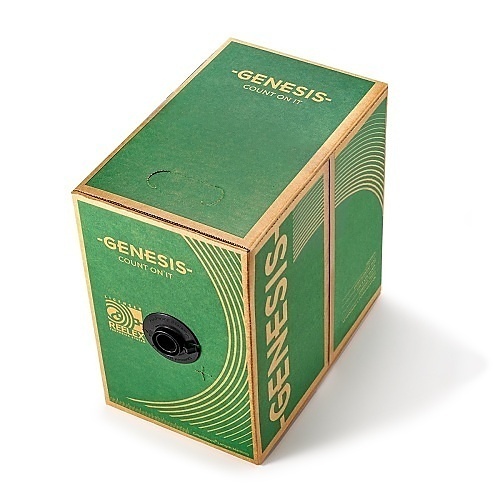

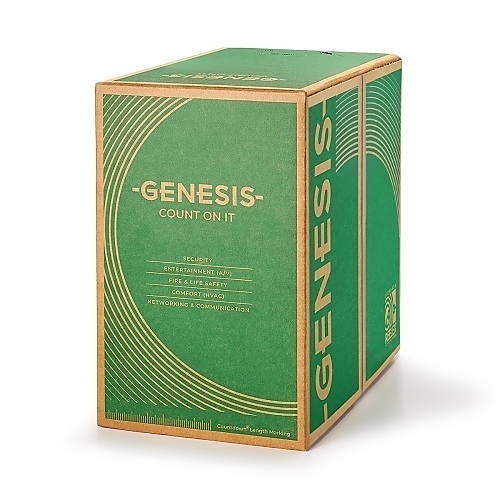

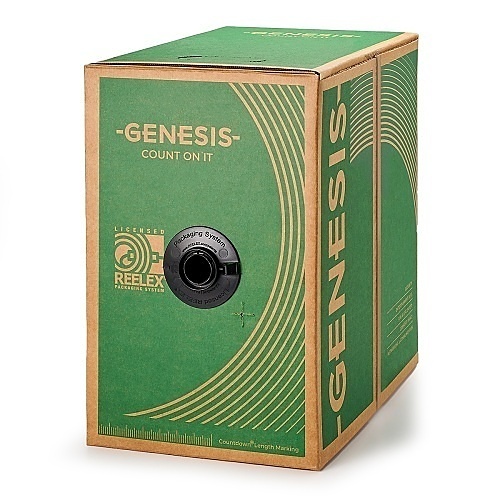

| Package Type | REELEX Pull Box |
| Weight (Approximate) | 19 lb |
| Technical Information | |
| American Wire Gauge | 22AWG |
| Cable Listing | CL3P, CMP, FPLP, FT6 |
| Cable Rating | Plenum |
| Cable Type | Multi-conductor/Multi-pair |
| Conductor Count | 2 |
| Conductor Material | Bare Copper |
| Connector on First End | Bare Wire |
| Connector on Second End | Bare Wire |
| Device Supported | Burglar Alarm, Control Panel, Speaker |
| Jacket Material | LS PVC |
| Number of Conductors | 4 |
| Number of Pairs | 2 |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
