Description

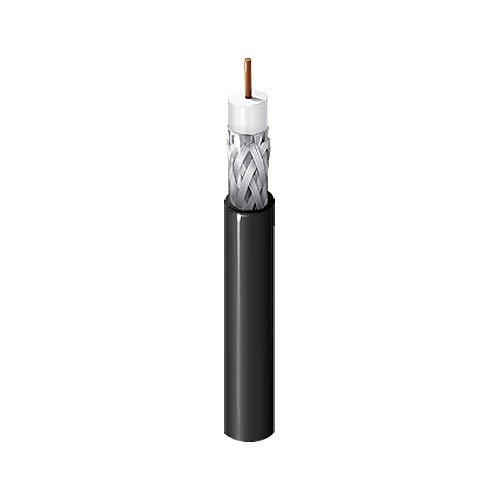

75 Ohm SDI Coaxial Cable, RG-6, 18 AWG Solid Bare Copper Core, FEP Insulation, Foil with 95% Tinned Copper Braid Shield, PVC Jacket, CMP Rated
Belden 1695A 010Z1000 18AWG Solid BC RG-6 Coaxial Video Cable, Plenum-CMP, Flamarrest Jacket, 500′ (152.4m), Black
In Stock
Special Order
$4,055.87
- 6 Gb/s UHDTV Digital Video, HD-SDI 1080p
- Coaxial Cable Type: RG-6
- 18 AWG Gauge
- Solid Conductor
- Material: High Conductivity Bare Copper (BC)
| General Information | |
| Brand Name | Belden |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 1695A 010Z1000 |
| Product Name | Coaxial Video Cable |
| Product Type | Video Cable |
| Media & Performance | |
| Data Transfer Rate | 6 Gbit/s |
| Miscellaneous | |
| Environmental Certification | China RoHS, China RoHS 2, ELV, EU RoHS, EU WEEE, RoHS, RoHS 2 |
| Environmentally Friendly | Yes |
| Features | Bendable, Tri-laminate Shielding |
| Physical Characteristics | |
| Cable Length | 1000' |
| Color | Black |
| Insulation Material | FFEP |
| Material | Bare Copper |
| Package Type | Bulk |
| Technical Information | |
| American Wire Gauge | 18AWG |
| Cable Rating | Plenum |
| Cable Type | Coaxial |
| Conductor Count | 1 |
| Conductor Material | Bare Copper |
| Device Supported | HDTV, Video Device |
| Impedance | 75 ohms |
| Jacket Material | LS PVC, PVC |
| Number of Conductors | 1 |
| Shielding | Yes |
| Solid or Stranded | Solid |
| Supported Resolution | 1920 x 1080 |
