Description

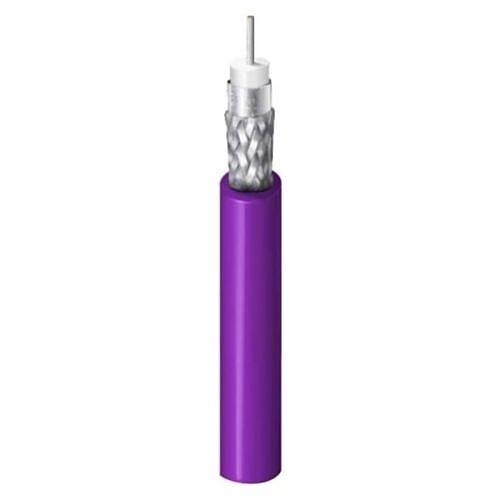

75 Ohm SDI Coaxial Cable, RG-6 Type, featuring an 18 AWG Solid Silvered Copper Conductor, FEP Insulation, with a foil and 95% Tinned Copper Braid Shield, enclosed in a PVC Jacket, CMP Certified.
Belden 4694P 0071000 18-1 4K UHD Coax Cable, Solid Silvered Copper Conductor, RG-6, CMP, 75 Ohms, 1000′ Reel, Violet
in stock
Special Order
$5,135.08
- Ultra-High Definition digital video cabling
- Compatible with 4K Single-Link 12 Gb/s UHDTV standards
- Optimized for 4K digital cinema formats
- Supports 8K Quad-Link UHDTV applications
- Designed for HD-SDI 1080p transmissions
- Constructed with 18 AWG Solid Silver-Coated conductors
- FEP (Fluorinated Ethylene Propylene) foam insulation
- Durable PVC outer jacket
- Nominal overall cable diameter: 0.229" (5.82mm)
- Rated for 300V CMP compliance
| General Information | |
| Brand Name | Belden |
| Manufacturer Part Number | 4694P 0071000 |
| Physical Characteristics | |
| Package Type | Reel |
| Technical Information | |
| American Wire Gauge | 18AWG |
| Cable Type | RG-6 |
| Impedance | 75 ohms |
| Solid or Stranded | Solid |
