in stock
In Stock
$123.49

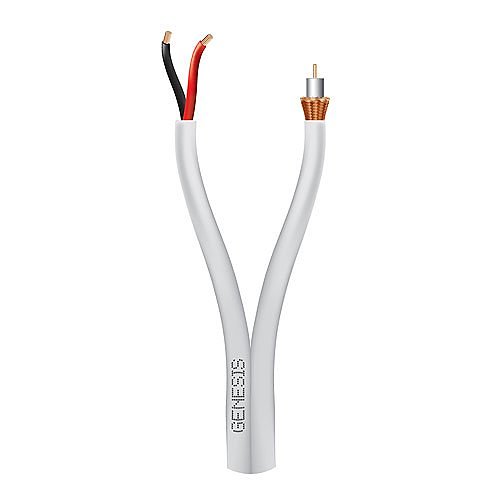

This Genesis® cable is designed for reliable analog video surveillance systems, featuring a coaxial video cable and a power cable in a parallel-zip configuration with a general purpose rating. The coaxial section includes a solid 20 AWG copper center conductor and a 95% coverage bare copper-clad aluminum braid, while the power section is composed of 2 stranded 18 AWG copper conductors. Select this cable to ensure a stable connection for analog surveillance applications.
| Certifications | |
| TAA Compliant | No |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 65086101 |
| Packaged Quantity | 1 |
| Product Model | 65086101 |
| Product Name | Coaxial Video Cable |
| Product Type | Coaxial Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Features | Stranded |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Cable Length | 500' |
| Color | White |
| Insulation Material | HDPE, PP |
| Material | Bare Copper |
| Package Type | Reel-in-a-Box |
| Weight (Approximate) | 25 lb |
| Technical Information | |
| American Wire Gauge | 18AWG, 20AWG |
| Cable Listing | CL3, CM, Sunlight Resistant |
| Cable Rating | General Purpose |
| Cable Type | 75 Ohm RG59 + Power |
| Conductor Count | 3 |
| Conductor Material | Bare Copper |
| Device Supported | Security Device |
| Impedance | 75 ohms |
| Jacket Material | PVC |
| Number of Conductors | 1|2 |
| Shielding | Yes |
| Solid or Stranded | Solid|Stranded |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
