Description

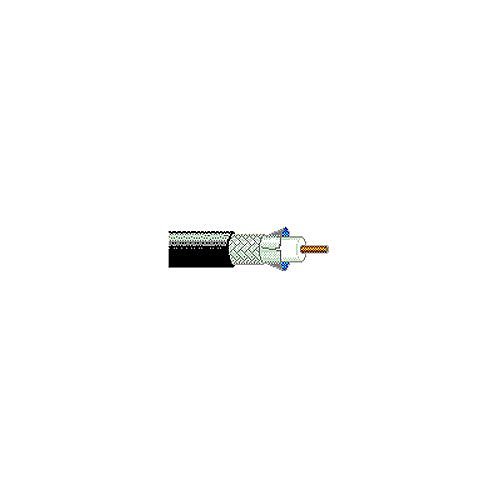

10 AWG solid .108″ bare copper-covered aluminum conductor featuring gas-injected foam HDPE insulation, enhanced with Duobond® II and a tinned copper braid shield offering 95% coverage, all encased in an LSZH jacket.
Belden 7810SB 0101000 RG-8 Coaxial Cable, Shipboard, RF400 Wireless Coax, 10 AWG CMG-LS/CMR, 1000′ (304.8m) Reel, Black
In Stock
Special Order
$2,933.30
- Wireless RF compatibility, ABS Type Approved, meeting standards such as CMG-LS, IEEE 45 clause 23, IEC 60092-376 clause 17, 60092-351, 60754-1, 60754-2, 61034, UL1865 FT4 Loading, Limited Smoke, IEC 60332-3-22 (Category A), 60332-1, IEEE 1202
- Conductor: 10 AWG
- Stranding: Solid
- Material: BCCA - Bare Copper Covered Aluminum
- Number of Coaxial Cables: 1
- Maintains strong signal transmission
- Coaxial cable designed for environments requiring moderate coverage and low bandwidth
- Flexible design for enhanced reliability and optimal performance
- Fully compatible with antenna systems
| General Information | |
| Brand Name | Belden |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 7810SB 0101000 |
| Product Name | 7810SB Coax - Low Loss 50 Ohm Wireless RF Transmission Cable |
| Product Type | Antenna Cable |
| Miscellaneous | |
| Environmental Certification | China RoHS, ELV, EU RoHS, EU WEEE, RoHS, RoHS 2 |
| Environmentally Friendly | Yes |
| Features | Bendable |
| Physical Characteristics | |
| Cable Length | 1000' |
| Color | Black |
| Insulation Material | PE |
| Material | Bare Copper |
| Package Type | Reel |
| Technical Information | |
| American Wire Gauge | 10AWG |
| Cable Type | Coaxial |
| Conductor Count | 1 |
| Conductor Material | Bare Copper |
| Device Supported | Antenna |
| Impedance | 50 ohms |
| Jacket Material | LSZH |
| Number of Conductors | 1 |
| Shielding | Yes |
| Solid or Stranded | Solid |
