Description

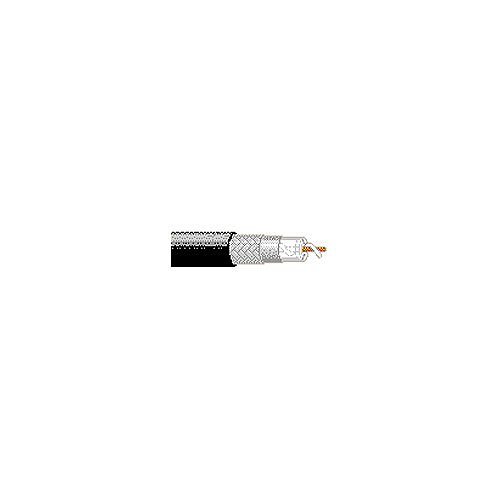

50 Ohm Coaxial Cable for Wireless Transmission, RG-8, featuring 10 AWG Solid Bare Copper Conductor, FEP Insulation, Foil and 90% Tinned Copper Braid Shielding, with a PVDF Jacket, CMP-rated.
Belden 89913 0101000 RG-8 Coax Cable, 50 Ohm Wireless Transmission Coax, 10 AWG Solid BC, Foil 90% TC Braid, FEP Jacket, CMP, 1000′ (304.8m) Reel, Black
in stock
Special Order
$14,601.62
- Optimized for point-to-point and point-to-multipoint wireless antenna communication; ideal for wireless microphones, two-way radios, amateur (ham) radio, low power FM, GPS, and RFID (Radio Frequency Identification) applications
- RG Type: 8
- Size: 10 AWG
- Conductor Construction: Solid
- Material: BC - Bare Copper
- Effectively maintains signal integrity
- Coaxial cable designed for environments requiring moderate coverage and low bandwidth
- Features UV-resistant durable material
- Fully compatible with GPS technology
| General Information | |
| Brand Name | Belden |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 89913 0101000 |
| Product Name | Coaxial Antenna Cable |
| Product Type | Antenna Cable |
| Miscellaneous | |
| Environmental Certification | China RoHS 2, EU WEEE, REACH, RoHS 2 |
| Environmentally Friendly | Yes |
| Features | UV Resistant |
| Physical Characteristics | |
| Cable Length | 1000' |
| Color | Black |
| Insulation Material | FEP |
| Material | PVDF |
| Package Type | Reel |
| Technical Information | |
| American Wire Gauge | 10AWG |
| Cable Rating | Plenum |
| Cable Type | RG-8 |
| Conductor Count | 1 |
| Device Supported | Antenna, GPS, Ham/Amateur Radio, Microphone |
| Impedance | 50 ohms |
| Jacket Material | PVDF |
| Number of Conductors | 1 |
| Shielding | Yes |
| Solid or Stranded | Solid |
