Description

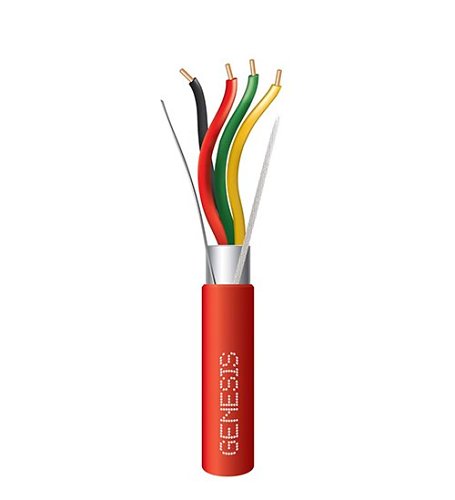

This cable is equipped with four solid 18 AWG copper conductors and includes an overall foil shield with a drain wire, all certified with a plenum rating. Opt for this solution for reliable fire alarm system wiring.
Genesis 46031004 18/4 Solid Shielded Plenum Fire Alarm Cable, FPLP, CL3P, FT6, 1000′ (304.8m), Reel, Red
in stock
In Stock
$213.17
- Durable bare copper conductors
- Comprehensive foil shielding
- Suitable for plenum, riser, and versatile indoor applications

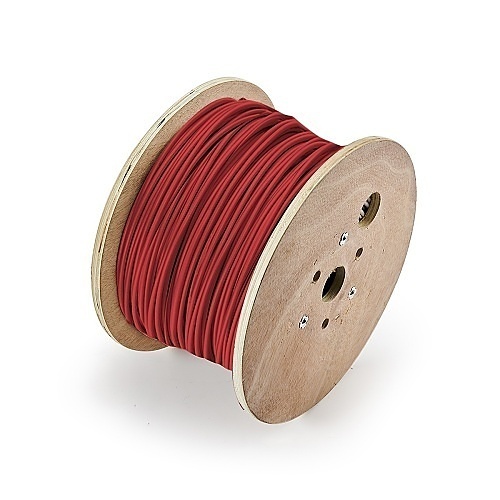

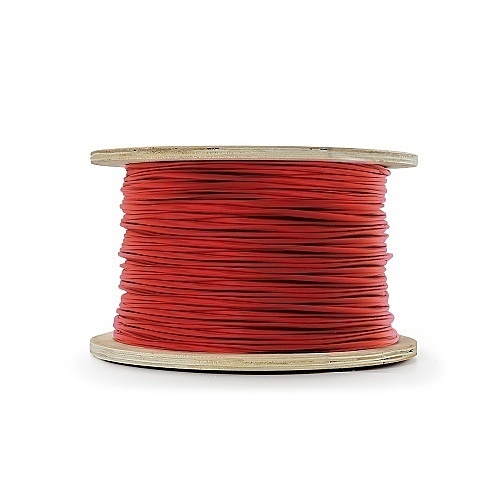

- 1000 ft. (304.8 m) spool
- Red outer coating
SKU:
46031004
Categories: Fire & Life Safety Cables, Plenum Shielded Cables, Wire & Cable
Brand: Genesis
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 46031004 |
| Packaged Quantity | 1 |
| Product Model | 46031004 |
| Product Name | 46031004 - 18 AWG 4C Sol Shielded Plenum, Red, 1000 ft. Reel |
| Product Type | Fire Alarm Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Cable Length | 1000' |
| Color | Red |
| Insulation Material | LS-PVC |
| Material | Bare Copper |
| Package Type | Reel |
| Weight (Approximate) | 29 lb |
| Technical Information | |
| American Wire Gauge | 18AWG |
| Cable Listing | CL3P, FPLP, FT6 |
| Cable Rating | Plenum |
| Conductor Count | 4 |
| Connector on First End | Bare Wire |
| Connector on Second End | Bare Wire |
| Core/Cladding Diameter | 18/4 |
| Device Supported | Alarm, Fire Alarm |
| Jacket Material | LS PVC |
| Number of Conductors | 4 |
| Number of Pairs | 2 |
| Shielding | Yes |
| Solid or Stranded | Solid |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
