Description

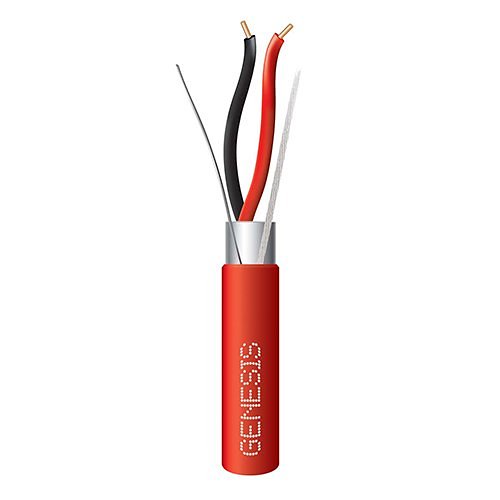

This Genesis® cable is equipped with two solid 16 AWG copper conductors, an overall foil shield, and a drain wire, all with a plenum rating. Opt for this cable to ensure reliable wiring for your fire alarm system.
Genesis 46065504 16/2 Solid Shielded Plenum Fire Alarm Cable, FPLP, CL3P, FT6, 500′ (152.4m), REELEX Pull Box, Red
in stock
In Stock
$92.88
- Robust bare copper conductors
- Comprehensive foil shield
- Suitable for plenum, riser, and general-purpose indoor installations

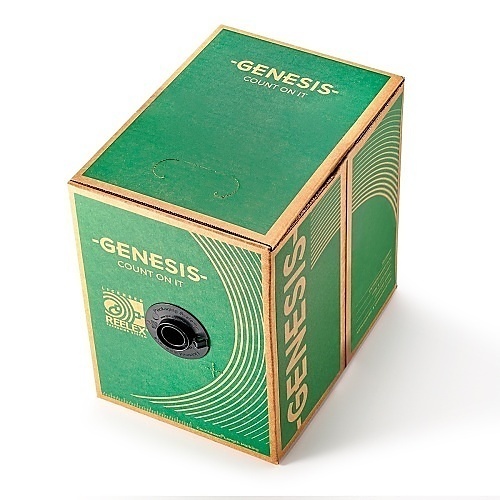

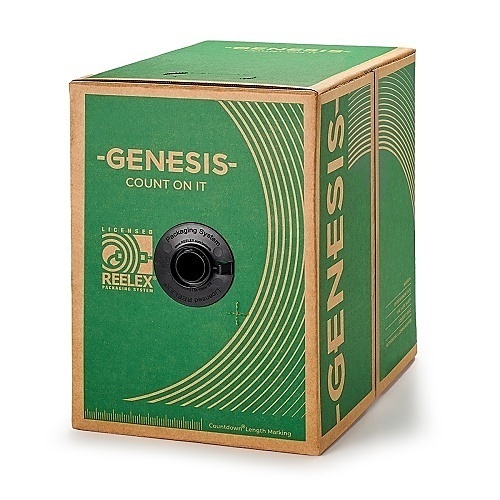

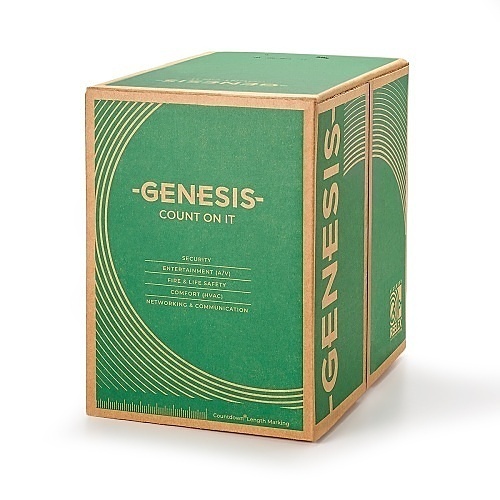

- Packaged in a 500 ft. (152.4 m) REELEX® easy-pull box
- Features a red outer jacket
SKU:
46065504
Categories: Fire & Life Safety Cables, Plenum Shielded Cables, Wire & Cable
Brand: Genesis
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 46065504 |
| Packaged Quantity | 1 |
| Product Model | 46065504 |
| Product Name | 46065504 - 16 AWG 2C Sol Shielded Plenum, Red, 500 ft. Pull Box |
| Product Type | Fire Alarm Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Cable Length | 500' |
| Color | Red |
| Insulation Material | LS-PVC |
| Material | Bare Copper |
| Package Type | REELEX Pull Box |
| Weight (Approximate) | 13.70 lb |
| Technical Information | |
| American Wire Gauge | 16AWG |
| Cable Listing | CL3P, FPLP, FT6 |
| Cable Rating | Plenum |
| Conductor Count | 2 |
| Connector on First End | Bare Wire |
| Connector on Second End | Bare Wire |
| Core/Cladding Diameter | 16/2 |
| Device Supported | Fire Alarm |
| Jacket Material | LS PVC |
| Number of Conductors | 2 |
| Number of Pairs | 1 |
| Shielding | Yes |
| Solid or Stranded | Solid |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
