Description

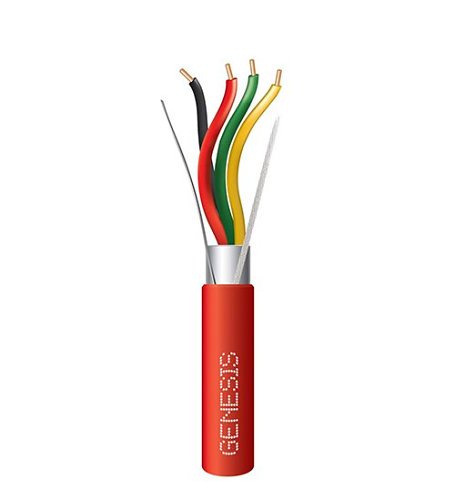

This Genesis® cable boasts 4 solid 16 AWG copper conductors, an overall foil shield with a drain wire, and is plenum-rated, making it an excellent choice for reliable fire alarm system wiring solutions.
Genesis 46071004 16/4 Solid Shielded Plenum Fire Alarm Cable, FPLP, CL3P, FT6, 1000′ (304.8m), Reel, Red
In Stock
In Stock
$340.19
- Features solid bare copper conductors
- Equipped with an overall foil shield for enhanced protection
- Suitable for plenum, riser, and general-purpose indoor installations

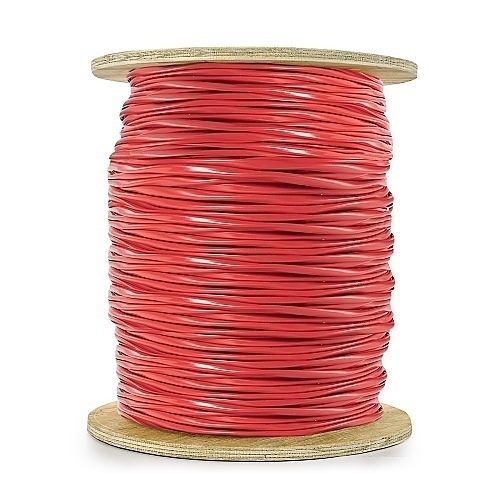

- Available in a 1000 ft. (304.8 m) reel for extensive reach
- Comes with a red jacket for easy identification
SKU:
46071004
Categories: Fire & Life Safety Cables, Plenum Shielded Cables, Wire & Cable
Brand: Genesis
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 46071004 |
| Packaged Quantity | 1 |
| Product Model | 46071004 |
| Product Name | 46071004 - 16 AWG 4C Sol Shielded Plenum, Red, 1000 ft. Reel |
| Product Type | Fire Alarm Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Cable Length | 1000' |
| Color | Red |
| Insulation Material | LS-PVC |
| Material | Bare Copper |
| Package Type | Reel |
| Weight (Approximate) | 46.10 lb |
| Technical Information | |
| American Wire Gauge | 16AWG |
| Cable Listing | CL3P, FPLP, FT6 |
| Cable Rating | Plenum |
| Conductor Count | 4 |
| Connector on First End | Bare Wire |
| Connector on Second End | Bare Wire |
| Core/Cladding Diameter | 16/4 |
| Device Supported | Fire Alarm |
| Jacket Material | LS PVC |
| Number of Conductors | 4 |
| Number of Pairs | 2 |
| Shielding | Yes |
| Solid or Stranded | Solid |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
