Description

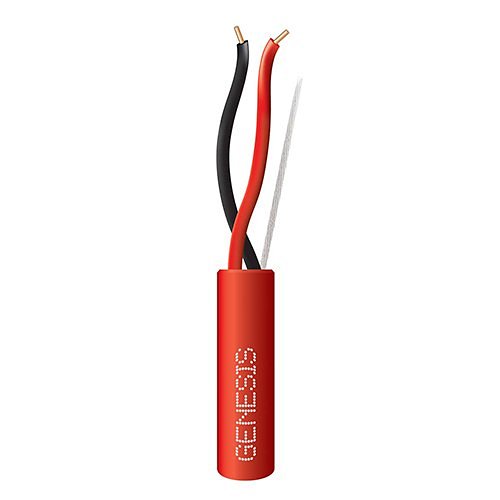

This Genesis® cable boasts two solid 14 AWG copper conductors and a plenum rating, making it an ideal choice for reliable wiring in fire alarm systems.
Genesis 45136104 14/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 500′ (152.4m), Pull Box, Red
in stock
In Stock
$125.03
- High-quality solid bare copper conductors
- Suitable for plenum, riser, and versatile indoor installations
- 500' (152.4 m) reel-in-a-box packaging
- Red outer jacket
SKU:
45136104
Categories: Fire & Life Safety Cables, Plenum Unshielded Cables, Wire & Cable
Brand: Genesis
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Genesis |
| Manufacturer | Genesis Cable |
| Manufacturer Part Number | 45136104 |
| Packaged Quantity | 1 |
| Product Model | 45136104 |
| Product Name | 45136104 - 14 AWG 2C Sol Plenum, Red, 500 ft. Reel-In-Box |
| Product Type | Fire Alarm Cable |
| Miscellaneous | |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Indoor/Outdoor | Indoor |
| Physical Characteristics | |
| Cable Length | 500' |
| Color | Red |
| Insulation Material | LS-PVC |
| Material | Bare Copper |
| Package Type | Reel-in-a-Box |
| Weight (Approximate) | 16.30 lb |
| Technical Information | |
| American Wire Gauge | 14AWG |
| Cable Listing | CL3P, FPLP, FT6 |
| Cable Rating | Plenum |
| Conductor Count | 2 |
| Conductor Material | Bare Copper |
| Connector on First End | Bare Wire |
| Connector on Second End | Bare Wire |
| Core/Cladding Diameter | 14/2 |
| Device Supported | Fire Alarm |
| Impedance | 63 ohms |
| Jacket Material | LS PVC |
| Number of Conductors | 2 |
| Number of Pairs | 1 |
| Shielding | No |
| Solid or Stranded | Solid |
| Warranty | |
| Limited Warranty | 3 Year; 3-for-1 |
