in stock
Special Order
$1,381.33
- Ideal for applications involving Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Surveillance systems, PoE, and environments with significant electromagnetic interference.
- Made with 23 AWG solid bare copper conductors.
- Insulated using FEP for enhanced performance.
- Simplifies device integration within corporate networks.
- Utilizes Category 6 cabling to precisely meet high performance needs and optimize efficiency.
- Minimizes interference by preventing the transmission of unwanted signals.
- Ensures full compatibility with networking hardware.
- Designed with flexibility to ease installation and improve user experience.

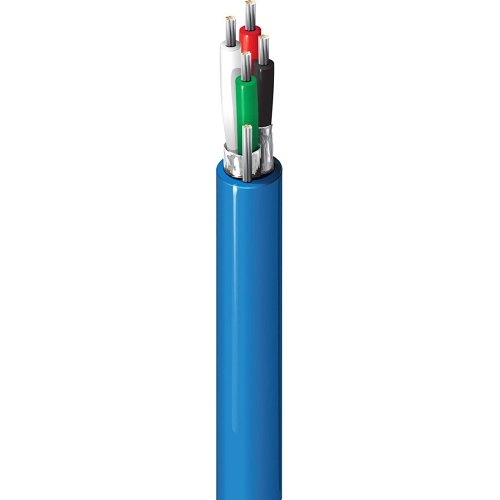

CAT6 Ethernet Cable (250MHz), featuring F/UTP foil shielding for enhanced signal protection, plenum-rated CMP jacket for premium safety standards, and designed for premise horizontal cabling applications. Constructed with 23 AWG solid bare copper conductors, FEP insulation, a polyester separator, and an overall Beldfoil shield. Equipped with a Flamearrest® jacket for fire resistance.
| General Information | |
| Brand Name | Belden |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 1352A D15Z1000 |
| Product Name | 1352A Multi-Conductor - Category 6 Nonbonded-Pair ScTP Cable |
| Product Type | Network Cable |
| Media & Performance | |
| Data Transfer Rate | 1 Gbit/s |
| Miscellaneous | |
| Environmental Certification | CEC, China RoHS, ELV, EU RoHS, EU WEEE, RoHS, RoHS 2 |
| Environmentally Friendly | Yes |
| Features | Attenuation to Crosstalk Ratio (ACR), Bendable, Equal Level Far End Crosstalk (ELFEXT), Minimized Near-End Crosstalk (NEXT), PoE, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power-sum Equal Level Far-End Crosstalk (PSELFEXT), Power-sum Near End Crosstalk (PSNEXT) |
| Physical Characteristics | |
| Cable Length | 1000' |
| Color | Blue |
| Insulation Material | FEP |
| Material | Bare Copper, PVC |
| Product Color | Blue, Brown, Green, Orange, White/Blue, White/Brown, White/Green, White/Orange |
| Product Material | Bare Copper, Polyester |
| Technical Information | |
| American Wire Gauge | 23AWG |
| Cable Listing | CMP, FT6 |
| Cable Rating | Plenum |
| Cable Type | Category 6 |
| Conductor Count | 4 |
| Conductor Material | Bare Copper |
| Device Supported | Network Device |
| Jacket Material | LS PVC |
| Number of Conductors | 8 |
| Number of Pairs | 4 |
| Shielding | Yes |
| Solid or Stranded | Solid |
