Brand: Belden

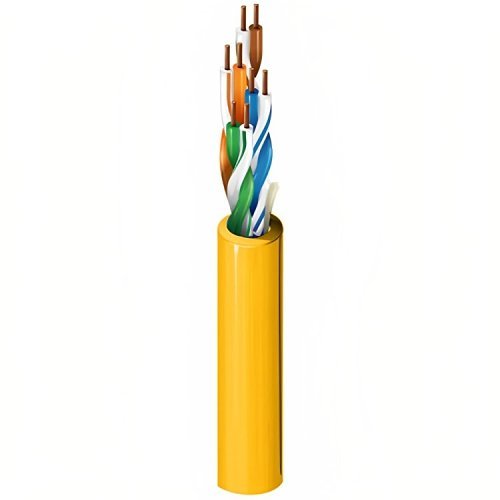

Belden 2413 004Z250 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 250′ (76.2m), Yellow

Name: Belden 2413 004Z250 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 250' (76.2m), Yellow
Brand: Belden
SKU: 2413 004Z250
Availability: InStock

in stock

Special Order

$149.66

Networking Horizontal Cable, supporting Ethernet standards like 1000BASE-T, 100BASE-TX, and 10BASE-T, as well as Power over Ethernet (PoE).
Composed of solid stranding for enhanced durability.
Conducted with high-quality bare copper for excellent conductivity.
Comprises 4 pairs of wires.
Gauge size: 23 AWG.
Constructed with solid stranded technology.
Wire Material: Bare Copper (BC) for optimal energy transmission.
Insulated with Polyolefin Fluorinated Ethylene Propylene (PO FEP) materials.
Designed for plenum installation to meet stringent safety regulations.
Enables rapid and secure data transfer across network infrastructures.
Utilizes Category 6+ cable classification to fulfill even the most demanding data network requirements.
Engineered with flame-retardant materials for increased safety and reliability.

SKU: 2413 004Z250 Categories: Category 6 Network Cables, Network Cables, Wire & Cable Brand: Belden

Description

Category 6+ Enhanced Premise Horizontal Cable designed for high-performance connectivity, operating at a frequency of 350MHz. This cable features 4 pairs of 23 AWG solid bare copper conductors with U/UTP (Unshielded Twisted Pair) configuration, ideal for structured cabling systems. It is equipped with a Plenum-CMP rated Flamarrest® PVC-LS jacket, ensuring safety and compliance in plenum spaces.

General Information
Brand Name	Belden
Manufacturer	Belden CDT, Inc
Manufacturer Part Number	2413 004Z250
Product Name	Cat.6+ U/UTP Network Cable
Product Type	Network Cable

Media & Performance
Data Transfer Rate	100 Mbit/s

Miscellaneous
Environmental Certification	China RoHS, ELV, EU RoHS, EU WEEE, RoHS, RoHS 2
Environmentally Friendly	Yes
Features	Bendable, PoE, PoE+, Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Attenuation To Alien Crosstalk Ratio Far End (PSAACRF), Power-sum Near End Crosstalk (PSNEXT)

Physical Characteristics
Cable Length	250'
Color	Yellow
Insulation Material	FEP, FRPO
Material	LS PVC
Product Color	Blue, Brown, Green, Orange, White/Blue, White/Brown, White/Green, White/Orange, Yellow
Product Material	Bare Copper

Technical Information
American Wire Gauge	23AWG
Cable Listing	CMP, FT6
Cable Rating	Plenum
Cable Type	Category 6+
Conductor Count	4
Device Supported	Network Device
Jacket Material	LS PVC
Number of Conductors	8
Number of Pairs	4
Shielding	No
Solid or Stranded	Solid
