Brand: Belden

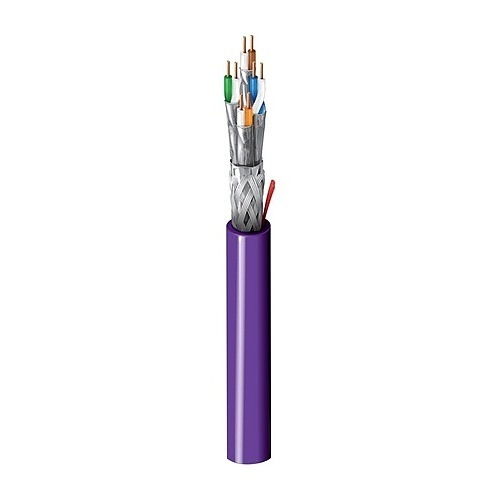

Belden 10GXE02.07500 CAT6A Enhanced Horizontal Plenum Cable, 23/4 Solid BC, Shielded, FTP, Indoor, 500m (1640.42′), Reel, Purple

Name: Belden 10GXE02.07500 CAT6A Enhanced Horizontal Plenum Cable, 23/4 Solid BC, Shielded, FTP, Indoor, 500m (1640.42'), Reel, Purple
Brand: Belden
SKU: 10GXE02.07500
Availability: InStock

in stock

Special Order

$1,061.89

Fire Resistance Standard: IEC 60332-1-2
Construction Product Regulation: Euroclass Eca and UKCA Class Eca
Power over Ethernet (PoE) Standards: IEEE 802.3bt Types 1 to 4
Network Cabling Standards: ANSI/TIA 568.2-D
International Standards Compliance: ISO/IEC 11801-1, IEC 61034-2 with a Smoke Density Minimum Transmittance of 60%
European Cabling Standards: EN 50173-1, Compliance with EN50174-2 Segregation Class "d"
Certified Halogen-Free in Europe
Halogen-Free Compliance: IEC 62821-1, With Zero Halogen Content under IEC 60754-1, and Restricted Halogen Acid Gas Conductivity under IEC 60754-2 (Max 2.5 µS/mm)
EU CE Certification
UKCA Certification for UK Standards

SKU: 10GXE02.07500 Categories: Category 6A Network Cables, Network Cables, Wire & Cable Brand: Belden

Description

Enhanced Category 6A Horizontal Network Cable (625MHz), featuring 4-Pair, 23 AWG Solid Bare Copper Conductors, with S/FTP configuration and Foam Polyethylene Insulation for each pair.

Includes Beldfoil® shielding and a 30% Tinned Copper Braid Shield, complemented by a LSZH Jacket, meeting CPR Euroclass Eca standards.

General Information
Brand Name	Belden
Manufacturer	Belden CDT, Inc
Manufacturer Part Number	10GXE02.07500
Product Name	10GX Category 6A Enhanced Cable, 4 Pair, S/FTP, LSZH Indoor CPR Eca
Product Type	Network Cable

Media & Performance
Data Transfer Rate	10 Gbit/s

Miscellaneous
Features	Attenuation to Crosstalk Ratio (ACR), Bendable, Equal Level Far End Crosstalk (ELFEXT), Halogen Free, Minimized Near-End Crosstalk (NEXT), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power-sum Alien Near End Crosstalk (PSANEXT), Power-sum Attenuation To Alien Crosstalk Ratio Far End (PSAACRF), Power-sum Equal Level Far End Crosstalk Loss (PSELFLEXT), Power-sum Near End Crosstalk (PSNEXT)
Indoor/Outdoor	Indoor

Physical Characteristics
Cable Length	1640'
Color	Purple
Insulation Material	PE
Package Type	Reel

Technical Information
American Wire Gauge	23AWG
Cable Rating	Plenum
Cable Type	Category 6a
Conductor Count	4
Device Supported	Network Device
Jacket Material	LSZH
Number of Conductors	8
Number of Pairs	4
Shielding	Yes
Solid or Stranded	Solid
