Description

Mircom’s **TX3 Electronic Directory Telephone Access Systems** are engineered to deliver robust access control solutions for diverse property types, including condominiums, apartment complexes, commercial office spaces, gated communities, and industrial facilities, accommodating up to 200 residents or users.

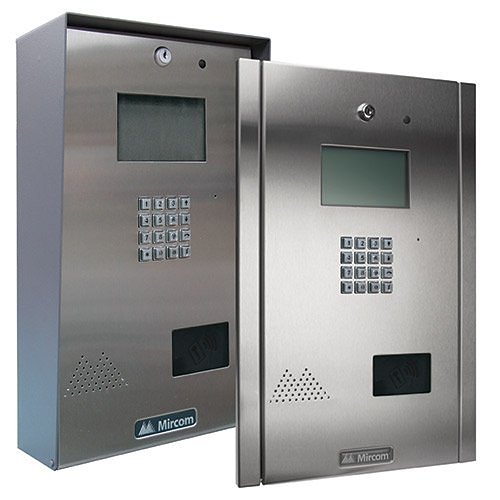

These advanced systems are offered in both surface Universal enclosures and flush Continental enclosures. Each unit is equipped with a high-quality microphone, tamper-resistant speaker, and options for integrating a postal lock and color camera for enhanced security measures.

The Universal Series enclosure boasts a built-in rain hood and is crafted from durable heavy-gauge stainless steel, ideal for outdoor use. The Continental Series enclosure, also made from heavy-gauge stainless steel, is primarily designed for indoor settings.

With comprehensive features, these TX3 systems include a prominent backlit LCD display featuring 8 lines with 20 characters each, capable of scrolling banner messages alongside resident names and dial codes. Additionally, the enclosures incorporate a 16-digit backlit keypad, resembling a telephone, with operational buttons dedicated to Page Up, Page Down, Call, and Info. The system is further enhanced with configurable multilingual displays and voice prompts, supporting English, Spanish, and French-Canadian.

The TX3 systems are highly flexible, allowing programming directly through the integrated keypad or via computer utilizing the optional TX3 configuration software. Moreover, remote configuration is achievable using the TX3 configuration software in conjunction with the TX3-MDM Modem Module.

General Information
Brand NameMircom
ManufacturerMircom Technologies Ltd
Manufacturer Part NumberTX3-200-8C-C
Product ModelTX3-200-8C-C
Product NameTX3-200-8C-C Intercom Sub Station
Product SeriesTX3
Product TypeIntercom Sub Station

Physical Characteristics
Application/UsageAccess Control, Apartment, Building, Condominium, Gate, Industrial, Office, Residential
Form FactorSemi-flush Mount, Surface Mount

Technical Information
Number of Sub Stations Supported200
